浅谈Creo UI Editor

loacher · 发表于 2021-1-25 15:35

javascript:;Ui Editor是Creo用于二次开发中对话框的编辑器。

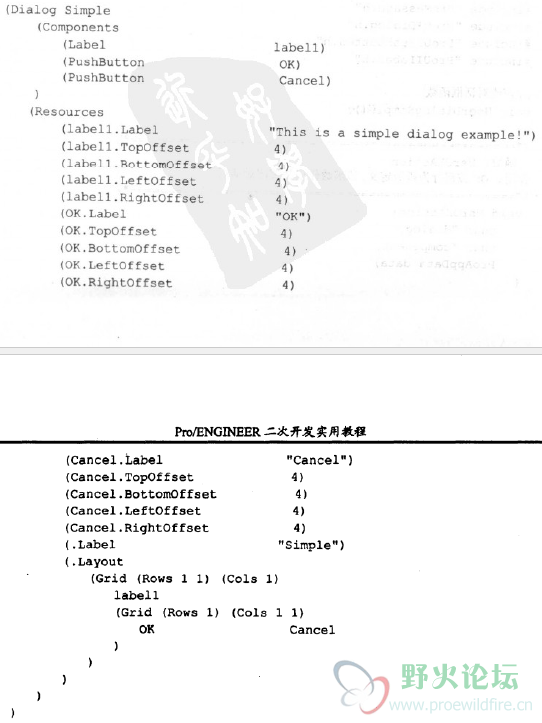

在低版本Proe，二次开发中对话框的编写十分繁琐，需要创建编写相应的对话框资源文件*.res。

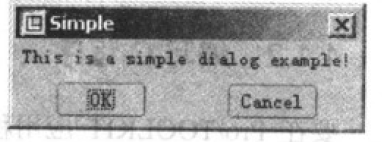

即便是最简单的对话框

，也要编写繁杂的文本文件

如果要编写较复杂的对话框javascript:;就显得非常不便，不仅耗时耗力，还容易出错！
以此为例，简要演示一下UI Editor编辑对话框的基本过程：

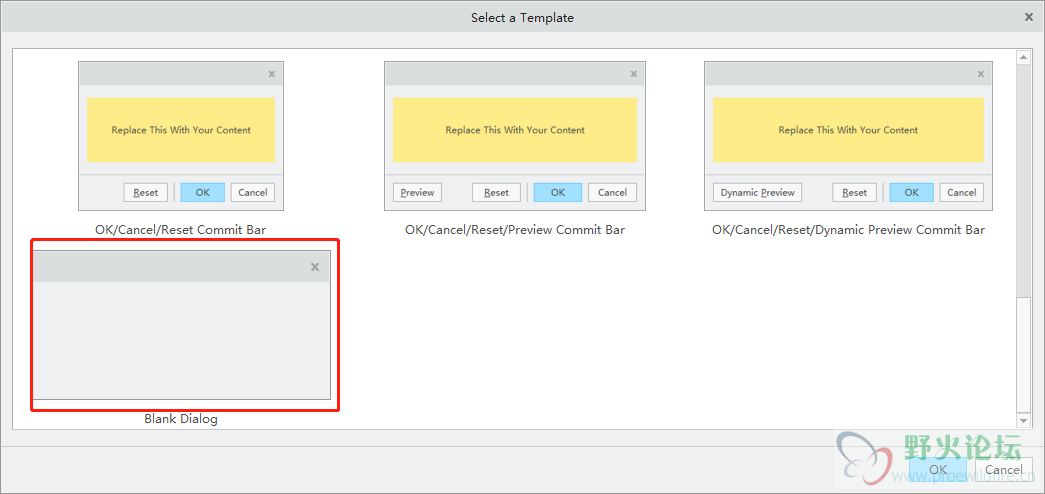

1、新建一个空白文件

2、创建上中下3个布局

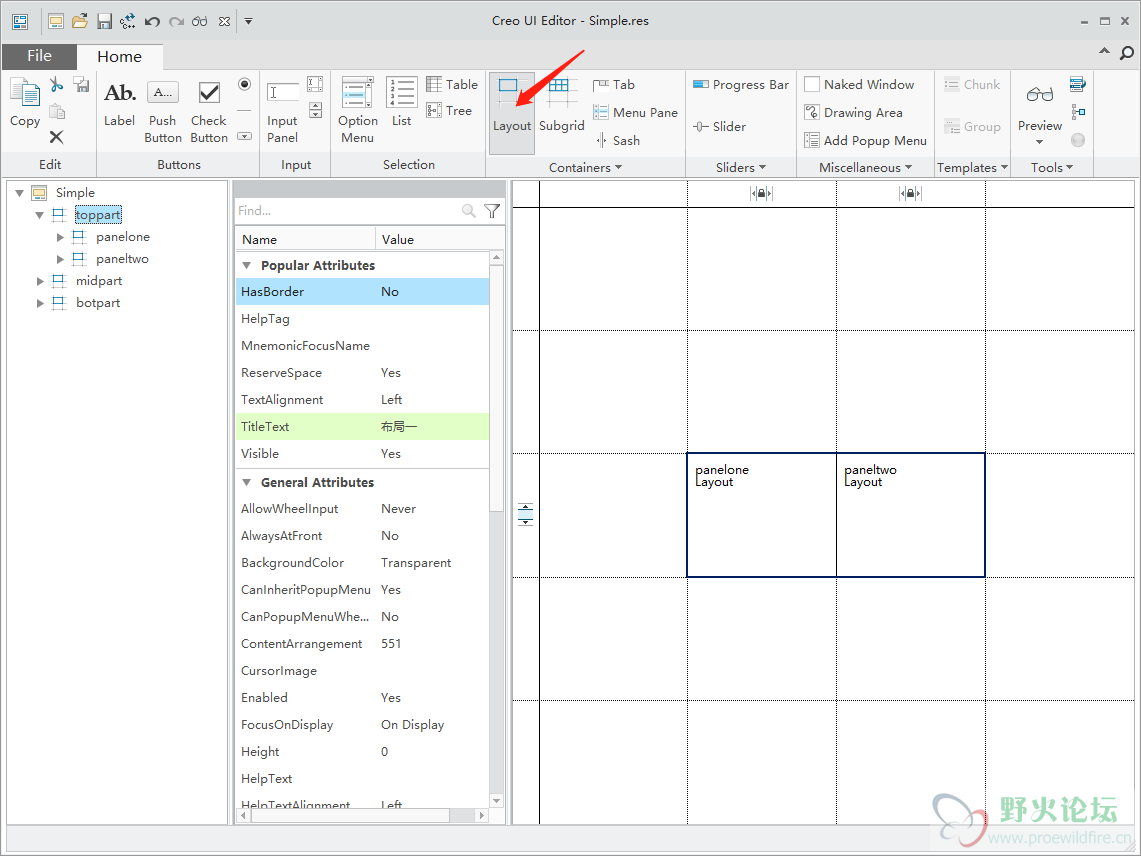

3、在上布局里再添加左右2个子布局

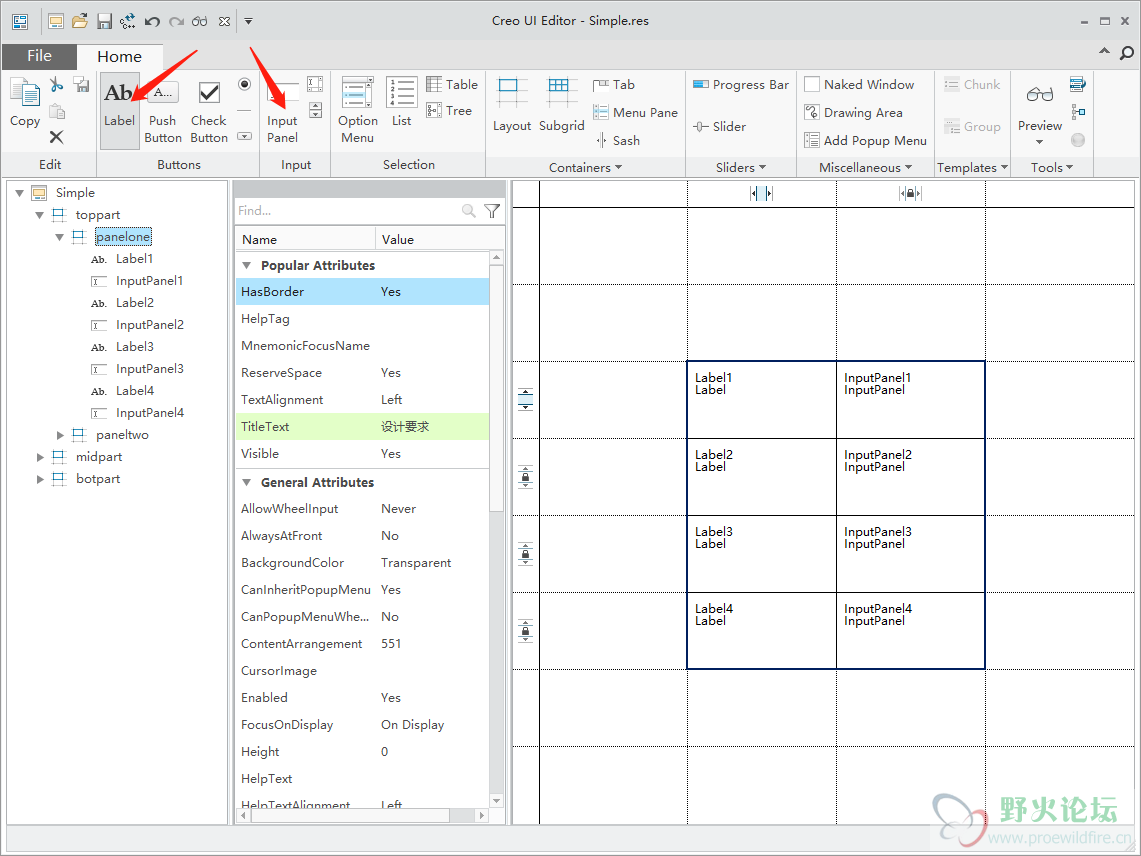

4、在上布局的左子布局里添加4个标签和输入项

右子布局同上

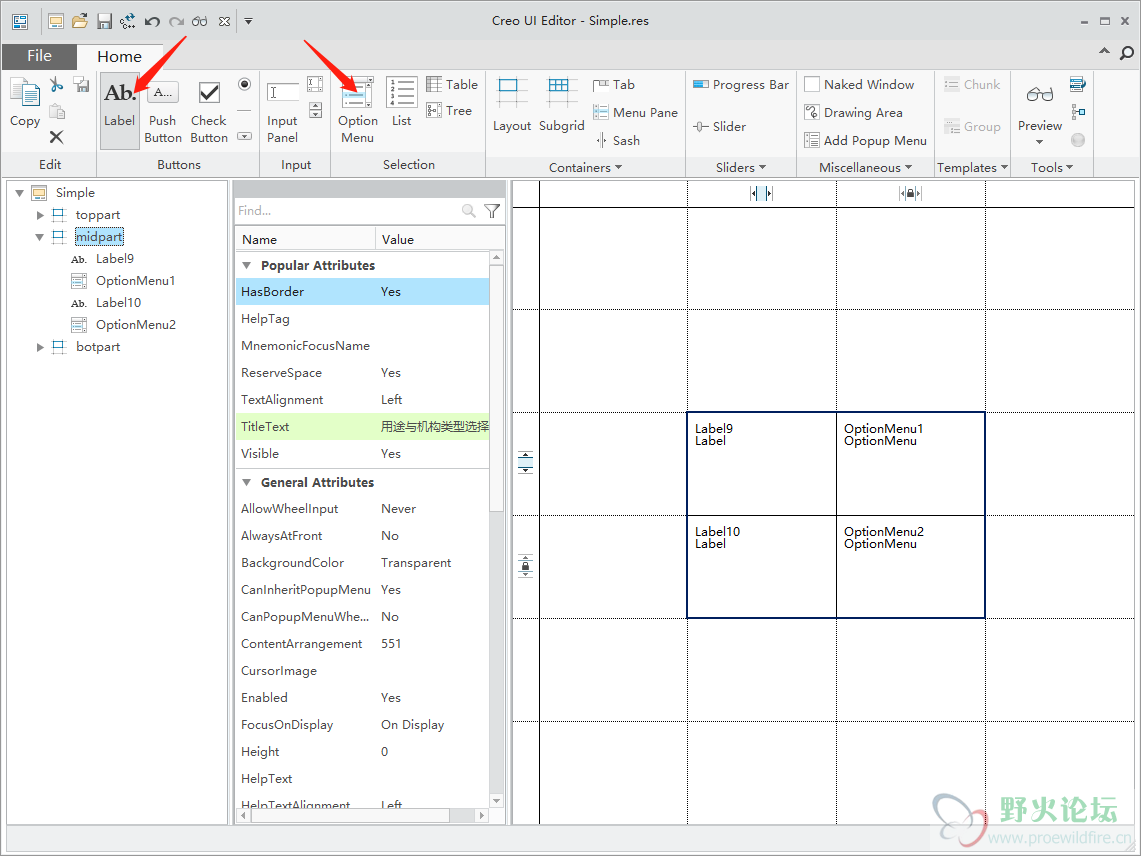

5、在中布局里添加2个标签和选择项

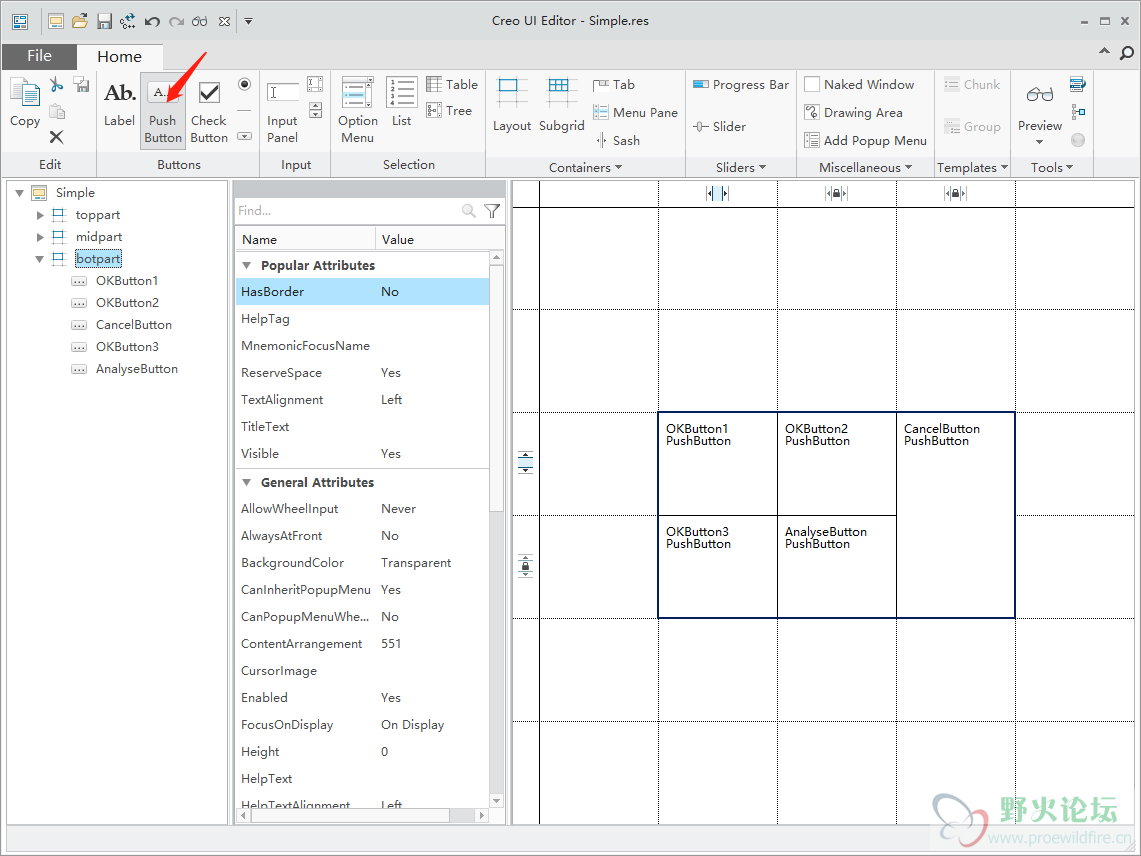

6、在下布局里添加5个按钮

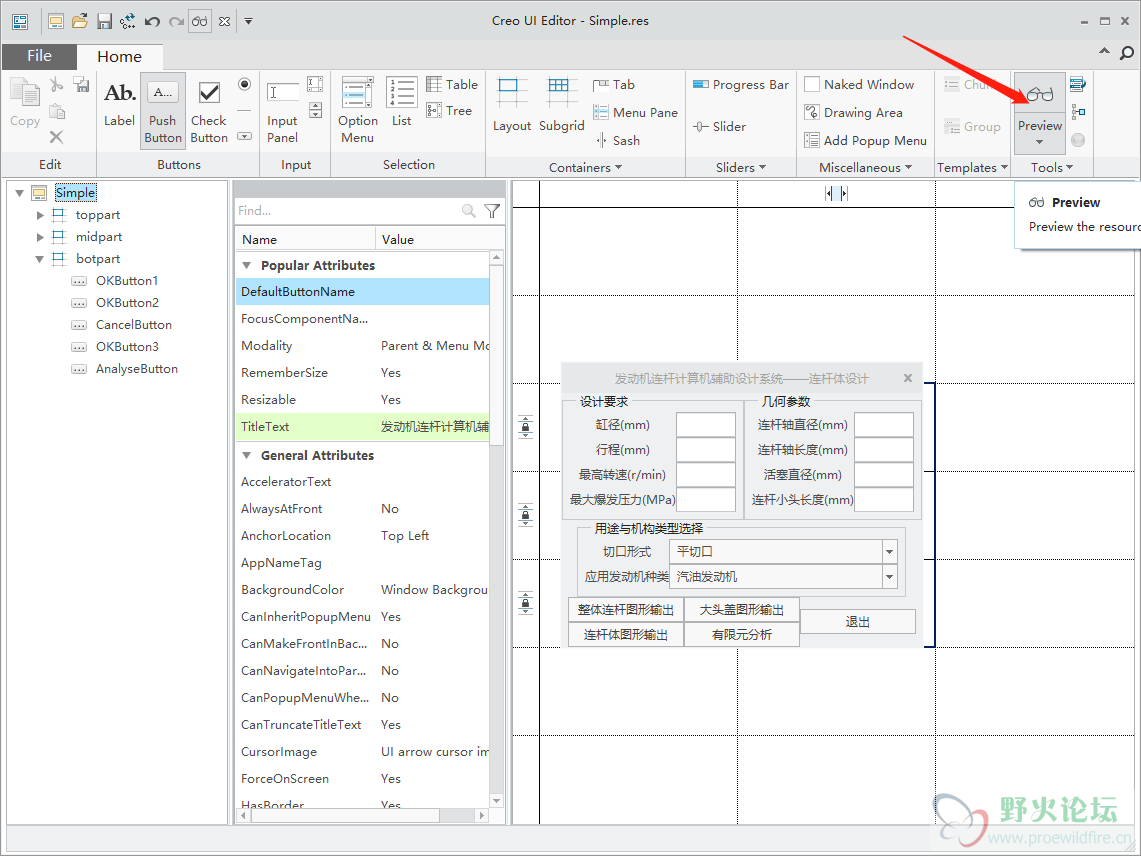

7、单击预览，就可以预览对话框

8、保存文件，就可以自动生成*.res文件
(Dialog Simple
(Components
      (SubLayout toppart)
      (SubLayout midpart)
      (SubLayout botpart)
)
(Resources
      (.ResourceHints "Version:Creo4")
      (.Label "发动机连杆计算机辅助设计系统——连杆体设计")
      (.Layout
         (Grid
            (Rows 0 0 0)
            (Cols 1)
            toppart midpart botpart
         )
      )
)
)
(Layout toppart
(Components
      (SubLayout panelone)
      (SubLayout paneltwo)
)
(Resources
      (.Label "布局一")
      (.Layout
         (Grid
            (Rows 1)
            (Cols 0 0)
            panelone paneltwo
         )
      )
)
)
(Layout panelone
(Components
      (Label Label1)
      (InputPanel InputPanel1)
      (Label Label2)
      (InputPanel InputPanel2)
      (Label Label3)
      (InputPanel InputPanel3)
      (Label Label4)
      (InputPanel InputPanel4)
)
(Resources
      (Label1.Label "缸径(mm)")
      (Label2.Label "行程(mm)")
      (Label3.Label "最高转速(r/min)")
      (Label4.Label "最大爆发压力(MPa)")
      (.Label "设计要求")
      (.Decorated 1)
      (.Layout
         (Grid
            (Rows 1 0 0 0)
            (Cols 1 0)
            Label1 InputPanel1 Label2 InputPanel2 Label3 InputPanel3 Label4 InputPanel4
         )
      )
)
)
(Layout paneltwo
(Components
      (Label Label5)
      (InputPanel InputPanel5)
      (Label Label6)
      (InputPanel InputPanel6)
      (Label Label7)
      (InputPanel InputPanel7)
      (Label Label8)
      (InputPanel InputPanel8)
)
(Resources
      (Label5.Label "连杆轴直径(mm)")
      (Label6.Label "连杆轴长度(mm)")
      (Label7.Label "活塞直径(mm)")
      (Label8.Label "连杆小头长度(mm)")
      (.Label "几何参数")
      (.Decorated 1)
      (.Layout
         (Grid
            (Rows 1 0 0 0)
            (Cols 1 0)
            Label5 InputPanel5 Label6 InputPanel6 Label7 InputPanel7 Label8 InputPanel8
         )
      )
)
)
(Layout midpart
(Components
      (Label Label9)
      (OptionMenu OptionMenu1)
      (Label Label10)
      (OptionMenu OptionMenu2)
)
(Resources
      (Label9.Label "切口形式")
      (OptionMenu1.Names "n1" "n2")
      (OptionMenu1.Labels "平切口" "斜切口")
      (Label10.Label "应用发动机种类")
      (OptionMenu2.Names "n3" "n4")
      (OptionMenu2.Labels "汽油发动机" "柴油发动机")
      (.Label "用途与机构类型选择")
      (.Decorated 1)
      (.Layout
         (Grid
            (Rows 1 0)
            (Cols 1 0)
            Label9 OptionMenu1 Label10 OptionMenu2
         )
      )
)
)
(Layout botpart
(Components
      (PushButton OKButton1)
      (PushButton OKButton2)
      (PushButton CancelButton)
      (PushButton OKButton3)
      (PushButton AnalyseButton)
)
(Resources
      (OKButton1.Label "整体连杆图形输出")
      (OKButton2.Label "大头盖图形输出")
      (CancelButton.Label "退出")
      (OKButton3.Label "连杆体图形输出")
      (AnalyseButton.Label "有限元分析")
      (.Layout
         (Grid
            (Rows 1 0)
            (Cols 1 0 0)
            OKButton1 OKButton2
            (Size 2 1)
            CancelButton OKButton3 AnalyseButton
         )
      )
)
)

好啦，只要几分钟就能构建复杂的对话框，是不是简洁、直观啊
