关于Creo三维等轴测视图的设置

ChaoWes

在Creo三维等轴测视图中，系统默认的只有一个等轴测视图（四个方向的等轴测视图分别为：西南等测视图、东南等轴测视图、东北等轴测视图、西北等轴测视图，而Creo三维视图等轴测视图中只有其中的一个），有时候观察一个零件或装配件，仅有系统默认的等轴测视图是不够的，我们常常需要从其他视角来观察这个零件或装配件，此时就要重新设置新的三维等轴测视图了，下面是设置三维等轴测视图的方法及步骤：

1.单击按钮工具栏上的“保存的视图列表”图标，将视图设置为front视图（前视图）；

2.单击按钮工具栏上的“重定向视图”图标；

3.在“类型”中选取“动态定向”；

4.在“旋转”的“V（屏幕竖直方向）”值中输入45，并按键盘的回车键；

5.在“旋转”的“H（屏幕水平方向）”值中输入35.266，并按键盘的回车键；

6.在“已保存的视图”的“名称”中输入此视图的名称，比如“１”，并单击保存。

此时，等轴测视图的全部过程已经设置完毕，其他三个视图的设置方法及步骤与上面的设置大致相同，不同之处在于第4步中的“45”分别输入为：-45，135，-135，当然视图名称是不能相同的。要重新设置的话，单击对话框右下角的“撤消”即可回到front视图（前视图）中。

注：在设置的过程中，上面的步骤顺序是不能混乱的，这点务必要注意。

abao20162016

不错 感谢分享

秋仔

不错，再加个配图说明，就更加一目了然。

zqh100

不错，不错。谢谢分享。

ronny

好东西。顶上

xiaobao

好东西，值得学习

fuguangyi

谢谢分享

可以把这个文件直接考入config.pro里就可以生成名为3D的等轴视图的快捷键

mapkey 等轴视图 @MAPKEY_NAME等轴视图;@MAPKEY_LABEL等轴视图;\
mapkey(continued) ~ Select `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh407984315.proe_win:casc340798662`;\
mapkey(continued) ~ Close `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh407984315.proe_win:casc340798662`;\
mapkey(continued) ~ Command `ProCmdViewNormal@PopupMenuGraphicWinStack` ;\
mapkey(continued) ~ Select `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh407984315.proe_win:casc340798662`;\
mapkey(continued) ~ Close `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh407984315.proe_win:casc340798662`;\
mapkey(continued) ~ Command `ProCmdViewOrient` ;~ Move `orient` `orient` 2 24.626506 5.138091;\
mapkey(continued) ~ Open `orient` `SetupOptions`;~ Close `orient` `SetupOptions`;\
mapkey(continued) ~ Select `orient` `SetupOptions` 1 `dynorient`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` 45.000000;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` 35.266000;\
mapkey(continued) ~ Activate `orient` `spinPH.XSpinBox` 35.266000;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `3`;~ Input `orient` `NameVw_IP` `3d`;\
mapkey(continued) ~ Update `orient` `NameVw_IP` `3d`;~ Activate `orient` `NameVw_PB_Save`;\
mapkey(continued) ~ Activate `orient` `OkPB`;

zydl

好东西，谢谢分享

qq202777898

感谢大佬分享！谢谢（我把模板设置过来就不用每个都修改了）

ChaoWes

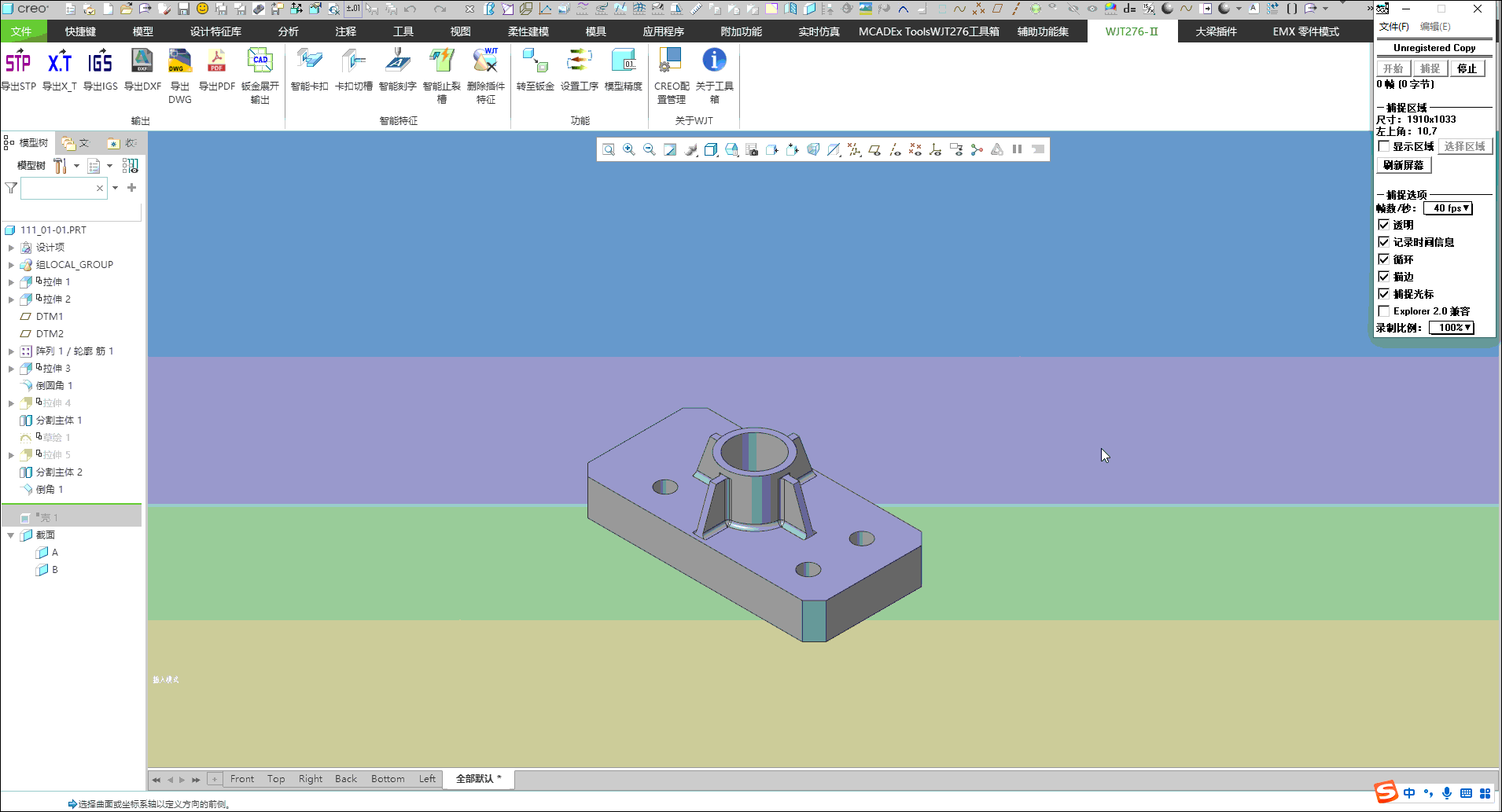

补充一个，一键重定向6视图和轴侧视图（名称为1）名称可以在下面红色一行修改

选择需要的front面即可

mapkey threeviews @MAPKEY_LABEL三视图;\
mapkey(continued) ~ Command `ProCmdViewNormal` ;@PAUSE_FOR_SCREEN_PICK;\
mapkey(continued) ~ Command `ProCmdViewOrient` ;~ Open `orient` `SetupOptions`;\
mapkey(continued) ~ Close `orient` `SetupOptions`;\
mapkey(continued) ~ Select `orient` `SetupOptions` 1 `dynorient`;\
mapkey(continued) ~ Select `orient` `spinPH.SpinTypeRadio` 1 `XYZ`;\
mapkey(continued) ~ Select `orient` `spinPH.SpinTypeRadio` 1 `HVC`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` 45.000000;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` 35.266000;~ Command `ProCmdViewRefit` ;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `1`;~ Update `orient` `NameVw_IP` `1`;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` 0.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.XSpinBox` 0.000000;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` -45.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.YSpinBox` -45.000000;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `FRONT`;~ Update `orient` `NameVw_IP` `FRONT`;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;~ Activate `orient` `OkPB`;\
mapkey(continued) ~ Command `ProCmdViewOrient` ;\
mapkey(continued) ~ Select `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Activate `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Open `orient` `SetupOptions`;~ Close `orient` `SetupOptions`;\
mapkey(continued) ~ Select `orient` `SetupOptions` 1 `dynorient`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` 180.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.YSpinBox` 180.000000;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `BACK`;\
mapkey(continued) ~ Update `orient` `NameVw_IP` `BACK`;~ Activate `orient` `NameVw_PB_Save`;是;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` 0.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.YSpinBox` 0.000000;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `TOP`;~ Update `orient` `NameVw_IP` `TOP`;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` 90.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.XSpinBox` 90.000000;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;~ Input `orient` `NameVw_IP` `BOTTOM`;\
mapkey(continued) ~ Update `orient` `NameVw_IP` `BOTTOM`;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` -90.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.XSpinBox` -90.000000;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;\
mapkey(continued) ~ Select `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Activate `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Update `orient` `spinPH.XSpinBox` 0.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.XSpinBox` 0.000000;\
mapkey(continued) ~ Select `orient` `namedviewPH.NameVw_List` 0;\
mapkey(continued) ~ Activate `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Input `orient` `NameVw_IP` `L`;~ Input `orient` `NameVw_IP` `LEFT`;\
mapkey(continued) ~ Update `orient` `NameVw_IP` `LEFT`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` 90.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.YSpinBox` 90.000000;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;~ Input `orient` `NameVw_IP` `RIGHT`;\
mapkey(continued) ~ Update `orient` `NameVw_IP` `RIGHT`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox` -90.000000;\
mapkey(continued) ~ Activate `orient` `spinPH.YSpinBox` -90.000000;\
mapkey(continued) ~ Activate `orient` `NameVw_PB_Save`;是;\
mapkey(continued) ~ Select `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Activate `orient` `namedviewPH.NameVw_List` 1 `FRONT`;\
mapkey(continued) ~ Activate `orient` `OkPB`;\
mapkey(continued) ~ Key `main_dlg_cur` `proe_win` 9 967 489 4391011 0 1162 799 1920 1080 \
mapkey(continued) 1602000 `C`;%cv;

mapkey cv @MAPKEY_LABEL1视图;\
mapkey(continued) ~ Select `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh397369119.igt_status_bar_layout:casc340798\
mapkey(continued) 662`;\
mapkey(continued) ~ Close `main_dlg_cur` \
mapkey(continued) `igToolbar_AncestorIGT_IGT_GRP_inh397369119.igt_status_bar_layout:casc340798\
mapkey(continued) 662`;~ Command `ProCmdNamedViewsGalSelect`  `1`;
